Vessel's Technical data sheet

DESCRIPTION VALUE UNIT
TYPE OF VESSELS PCTC (pure car & truck carrier)
LENGHT 210 MTS
BREATH 30 MTS
MAX. DRAFT 6,5 MTS
GROSS TONNAGE 55.000 TN
DWT 22.000 TN
MAX. SPEED 21 KNOTS
QUARTER RAMP 250 TN
SIDE/ TIDE RAMP STARBOARD SIDE
WARSILA MOTOR 30000 KW
CARGO CAPACITY 3500 L/MTS
CARGO CAPACITY 800 TEUS
2 CRANES FOR CONTAINERS 50 TN
REEFER PLUGS 50 UNITS
FLAG CYPRUS
PORT OF REGISTRY LIMASSOL
CLASSIFICATION SOCIETY BUREAU VERITAS
SHIPPING COMPANY SDG Lines
SCRUBBERS CLOSED CIRCUIT
BOW/STERN THRUSTER 1800 KW EACH
BALLAST WATER PLANT Alfa Laval PureBallast 3
SHIPYARD Nanjing Jinling
DESCRIPTION VALUE UNIT
TYPE OF VESSELS CONRO G4 freighter
LENGHT 296 MTS
BREATH 37,6 MTS
MAX. DRAFT 11,6 MTS
GROSS TONNAGE 100.430 TN
DWT 55.649 TN
SPEED 18 KNOTS
STERN RAMP 420 TN
SIDE/ TIDE RAMP STARBOARD SIDE
WÄRTSILÄ 70.000 HP
CARGO CAPACITY 5.270 L/MTS
CARGO CAPACITY 3.807 TEUS
REEFER PLUGS 209 UNITS
FLAG CYPRUS
PORT OF REGISTRY LIMASSOL
CLASSIFICATION SOCIETY BUREAU VERITAS
SHIPPING COMPANY SDG Lines
AUX. MOTORS 3.000 HP EACH (3)
BOW/STERN THRUSTER 2.200 HP EACH (3)
BALLAST WATER PLANT Alfa Laval PureBallast 3
SHIPYARD China State Shipbuilding Group
SHIP FUEL Fuel-flexible Can operate on methanol, HFO, MDO and liquid biofuel
DESCRIPTION VALUE UNIT
TYPE OF VESSELS CONRO
LENGHT 242 MTS
BREATH 35,2 MTS
MAX. DRAFT 8,8 MTS
GROSS TONNAGE 59 821 TN
NET TONNAGE 17 946 TN
SPEED 19 KNOTS
STERN RAMP 420 TN
SIDE/ TIDE RAMP STARBOARD SIDE
MACHINERY 2 x WinDG 7RT- flex50DF LNG&MGO, 2x 9 900 kW KW
CARGO CAPACITY 6442 L/MTS
FLAG CYPRUS
PORT OF REGISTRY LIMASSOL
CLASSIFICATION SOCIETY BUREAU VERITAS
SHIPPING COMPANY SDG Lines
AUX. MOTORS 2 x MAN 9L28/32DF 2 x 1 710 kWe
BOW/STERN THRUSTER 2 x bow thruster 2 000 kW/ each
PROPELLERS 2 x controllable pith propeller
BALLAST WATER CAPACITYR PLANT 13 856,4 m3
SHIPYARD CIMC Raffles Shipyard, China
SHIP FUEL Fuel-flexible
Bunker capacity LNG 1 603,7 m3
Bunker capacity MGO 1 082,3 m3

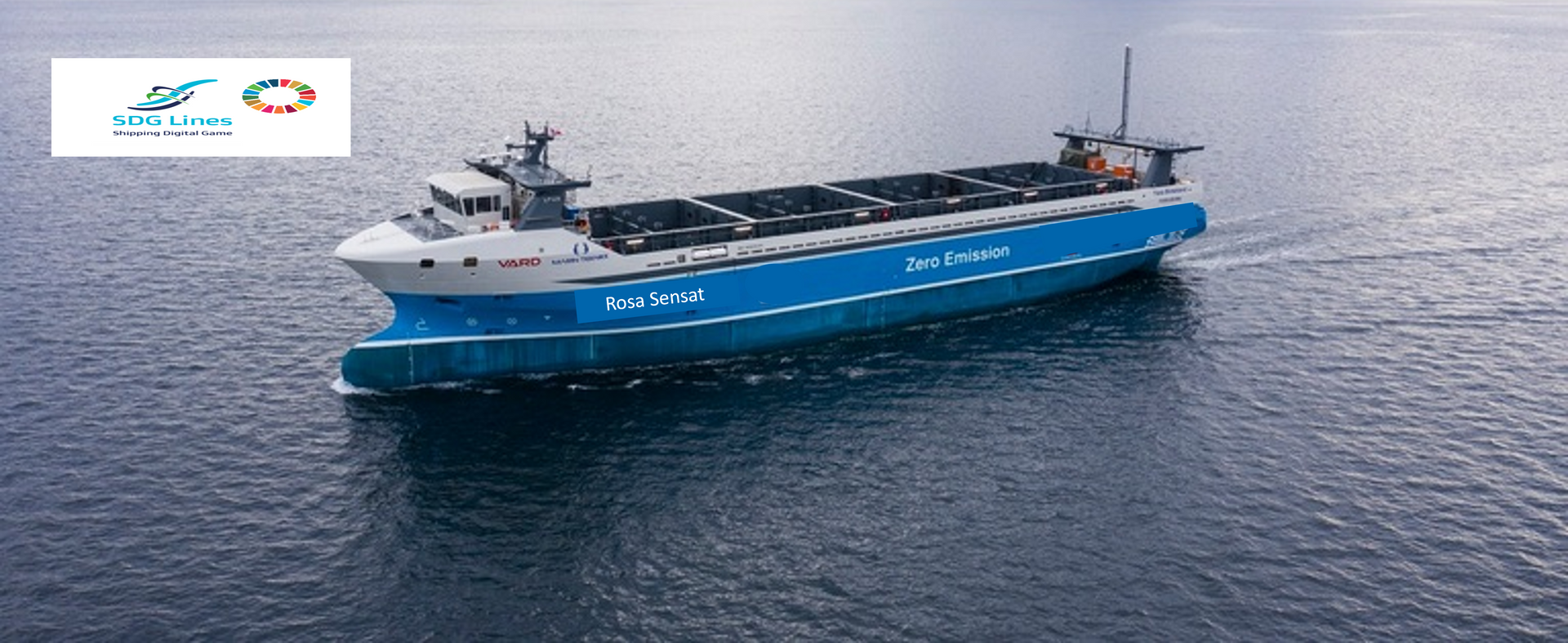

Type Autonomous cargo ship
Tonnage 3,200 DWT
Length Over 80 metres (260 ft)
Beam 15 metres (49 ft)
Draught 5 metres (16 ft)
Depth 12 metres (39 ft)
Installed power Batteries 6.8MWh[2]
Propulsion Electric motors driving 2 azimuth pods (2x 900 kW) and 2 tunnel thrusters (2x 700 kW)[2]
Speed 6 knots (11 km/h) service
12 knots (22 km/h) maximum
Capacity 120 TEU
Crew manned
Notes First autonomous commercial ship in the world.
